Basket-Conveyor Dishwashers
Specially designed for commercial use, this professional rack-type dishwasher is your best choice for efficient cleaning! It combines three powerful functions: powerful washing, excellent rinsing and in-depth disinfection. Its meticulously designed spray array can cover 360 degrees without any dead angles, realizing thorough rinsing. Whether it's a large number of dinner plates in a restaurant or delicate tableware in a hotel, it can quickly wash them clean, safeguarding your catering business and making the heavy task of dishwashing a breeze.
- Product Introduction
Advantages
1. Wash all tableware shapes & material
It is suitable for various tableware material such as ceramic, glass, stainless steel, melamine.
In terms of shapes and types table, it can wash plates, dishes, trays, bowls, spoons, pots and pans and all kinds of utensils.
2. Machine modules
Entrance (dish washing table)+ washing + high-temperature rinsing + disinfection+ exit (dish collection table).
The modules of this dishwasher can be customized with 1 washing zone+1 rinsing zone+ 1 disinfection zone or 1 washing+ 2 rinsing zone+ 2 disinfection zones.

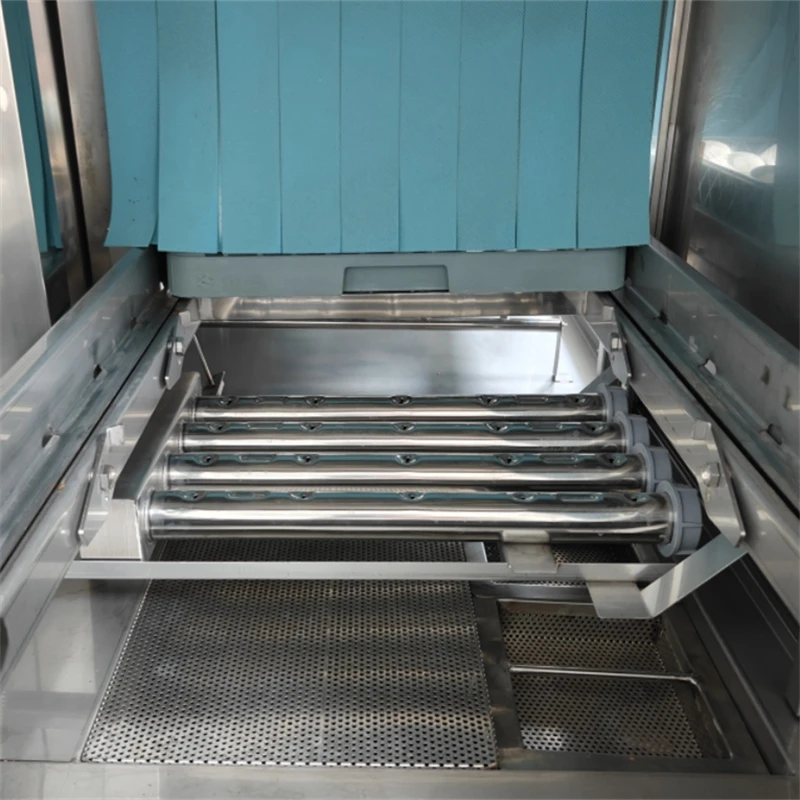

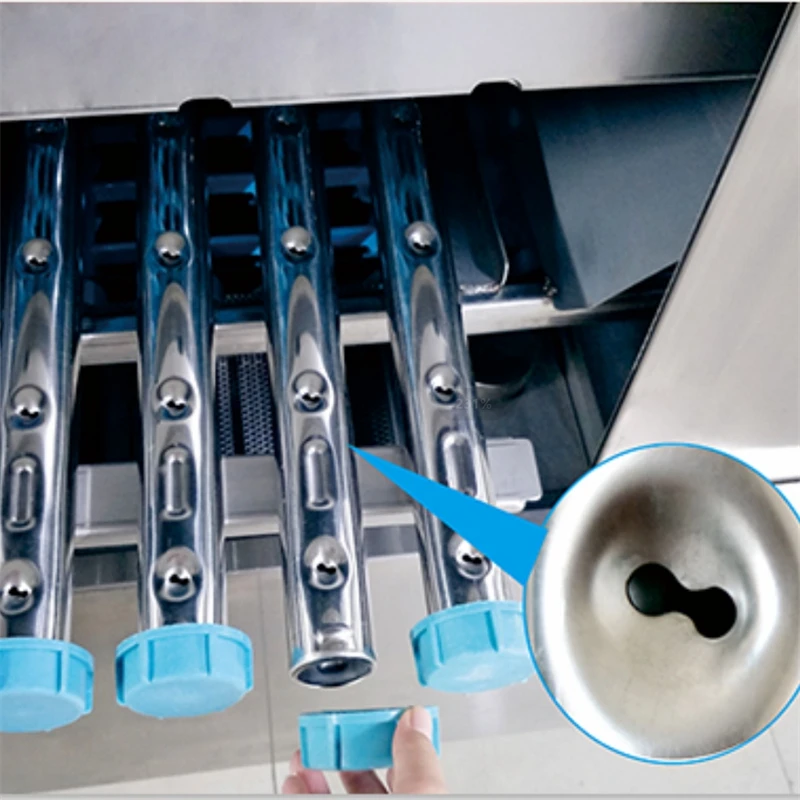

3. Spray system
Equipped with single cylinders double spray systems, unique 360-degree surround spray design with "8" font nozzle, stainless steel spray arm detachable spray arm prevents clogging, easy to clean without tools required.
4. Safety design
The exit end is equipped with a safety emergency stop switch
and a cutlery limit touch switch to ensure tableware safety.
Technical Parameters
|
Regular Size |
1500*750*1660mm |
|
Washing Ability |
180 baskets/ hour |
|
Washing Cycle |
60 seconds/basket |
|
Washing Temperature |
55℃~65℃ |
|
Sterilization Temperature |
82℃~100℃ |
|
Washing Height |
400mm |
|
Entrance Width |
510mm |
|
Main Water Tank Volume |
90L |
|
Power of Main Wash Tank |
12kW |
|
Water Consumption |
1.5L-2L/ basket |
|
Inlet Diameter |
4/in |
|
Drainage Diameter |
5.0/in |
|
Heating Mode |
Electricity |
| Total Power | 38/kW |
Power, Components & Plumbing
● 380V/50HZ three-phase five-wire power, 16 square main line, independent air leakage switch 40A.
● Customers can be equipped according to their own needs: working tables (for dirty dishes and clean dishes), high pressure shower, washing basket (for dishes, wine glasses and cups), detergent dispenser, machine dishwashing liquid, drier, etc.
● Water inlet: DN15 (4 in) is directly connected with the general water supply system, and the minimum water pressure is 2-5kg/cm2.
●Inlet water hardness 0.032-0.103g/L; Outlet diameter is 50mm.
● The dimension, material, ODM and OEM can all be customized.
