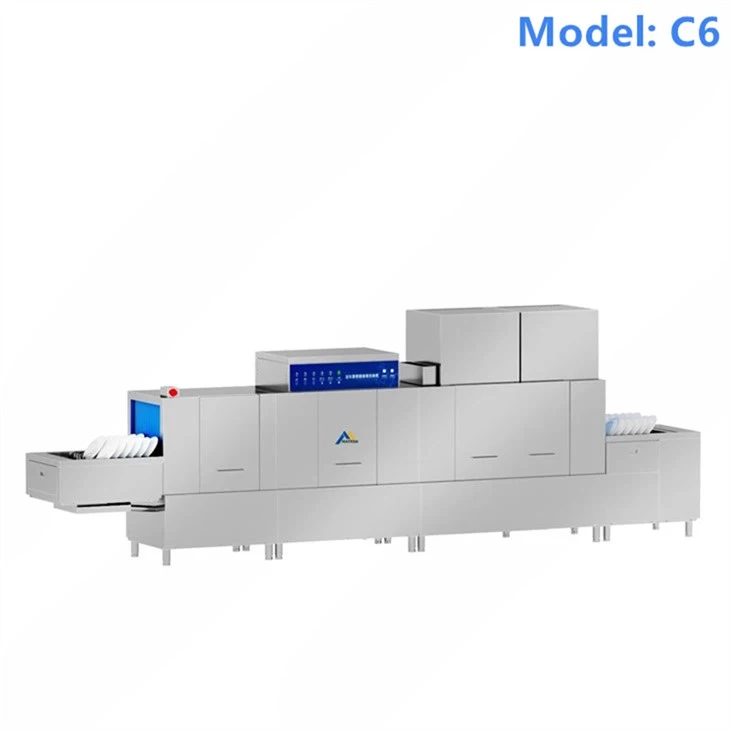

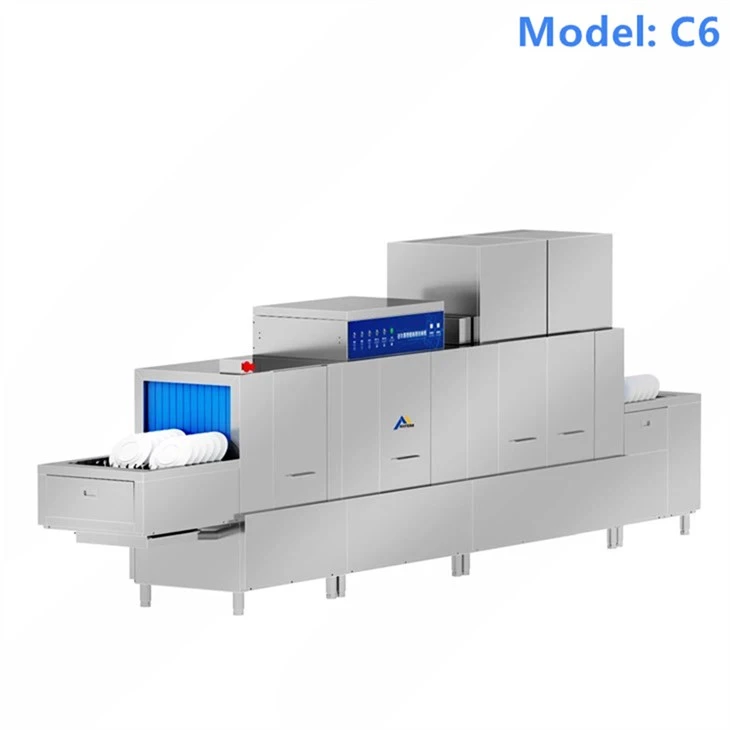

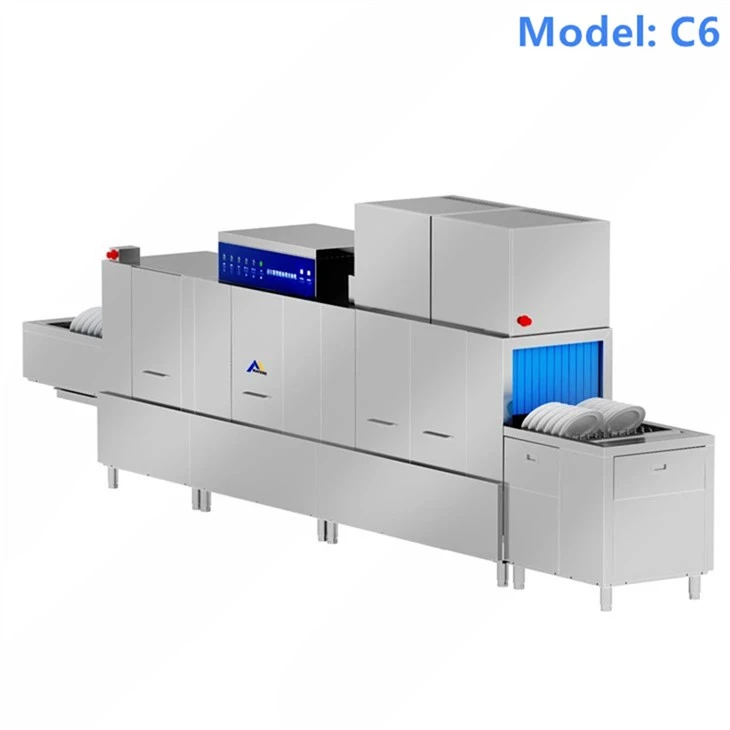

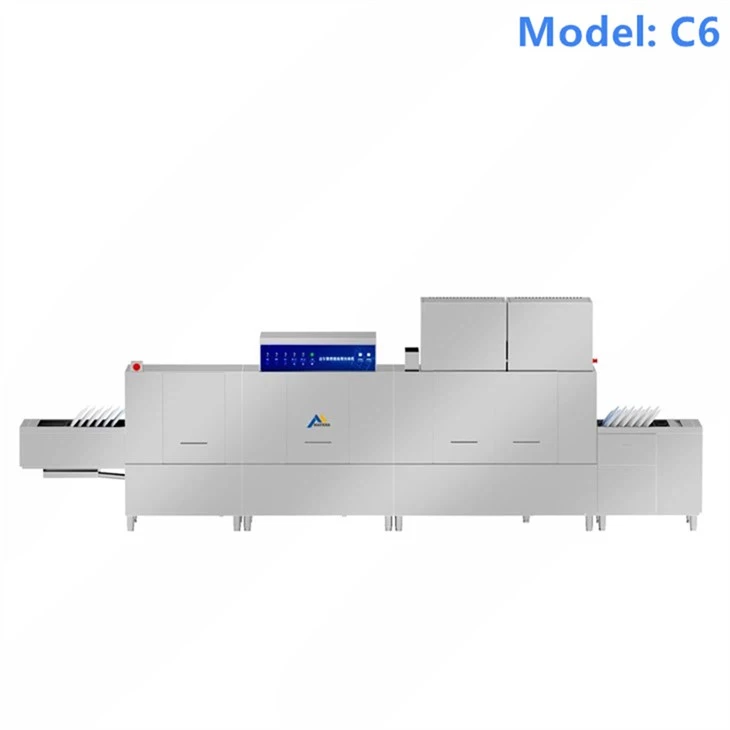

Flight Conveyor Dishwasher
Durable and Reliable, the Ideal Choice The conveyor belt made of food-grade materials is wear-resistant and corrosion-resistant. The industrial-grade motor runs stably, suitable for various commercial scenarios. The inclined insertion structure is convenient for maintenance, and there is no worry about after-sales service. It is the long-term trusted choice for catering enterprises!
- Product Introduction
Features
1. Dual-Spray & Dual-Dry with Two Models
C6 - 1: 2 Wash, 1 Rinse, 1 Disinfection, 2 Drying Cycles, optimized for efficient cleaning and drying.
C6 - 2: 2 Wash, 2 Rinses, 2 Disinfections, 2 Drying Cycles, ideal for heavy-duty cleaning tasks.
2. Advanced Debris Management
Equipped with a debris collection box and a sludge separator at the inlet, it effectively prevents foreign objects from entering the internal system, ensuring smooth operation and extending the machine's lifespan.
3. Basket-Free & Versatile Washing
Eliminating the need for dish baskets, it supports flexible washing methods like inclined insertion or flat placement, accommodating tableware of various sizes and shapes to meet diverse commercial kitchen needs.
4. Unique Nozzle Design
Featuring a distinctive "8"-shaped concave nozzle, it ensures thorough and consistent cleaning, leaving no spot untouched.
5. Reliable Electronic Controls
Powered by imported Schneider components, the electronic control system guarantees stable, durable, and user-friendly operation. An automatic protection and anti-overload device at the outlet end safeguards against electrical issues.
6. Intelligent Water & Temperature Management
The intelligent system automatically manages water levels and temperature, refilling when low, stopping when full, restarting heating when temperatures drop, and halting once the set temperature is reached, minimizing water and energy consumption.
7. High-Temperature Disinfection
The high-temperature rinsing and disinfection area adopts a double-floating design with 10 - 22 high-precision, high-pressure fan-shaped nozzles, ensuring complete residue removal and a 100% disinfection rate to meet strict hygiene standards.
8. One-Key Rapid Drying Switch
The drying function enables seamless one-key switching between hot and cold air without pausing the machine, providing quick and efficient drying options for different types of tableware.
Technical Parameters
|
Regular Size |
6500*825*1950mm |
|
|
Washing Ability |
5,800~8,800 dishes/hour |
|
|
Washing Cycle |
20S~60S |
|
|
Washing Temperature |
55℃~65℃ |
|
|
Sterilization Temperature |
82℃~100℃ |
|
|
Washing Height |
420mm |
|
|
Entrance Width |
745mm/825mm |
|
|
Entrance & Exit Length |
900mm |
|
| Main Washing Capacity |
90L* 2 |
|
|
Inlet Diameter |
4/in |
|
|
Drainage Diameter |
5.0/in |
|
| Heating Mode | Electricity or gas | |
| Total Power | Customization | |
Power, Components & Plumbing
-Power Supply: 380V/50Hz, three-phase five-wire, 35 square mm main line, 125A independent leakage-proof switch.
- Customizable Accessories: customers can choose additional items as per needs, including cworking tables (for dirty dishes and clean dishes), bubble soaking tan, untensil baskets, etc.
- Optional Kits: dishwashing liquid, dryers can be sourced in the local market.
- Water Inlet: DN15 (4 in), directly connectable to a general water supply system; minimum water pressure 2 - 5 kg/cm², water hardness 0.032 - 0.103 g/L.
- Drain: 50 mm diameters.
