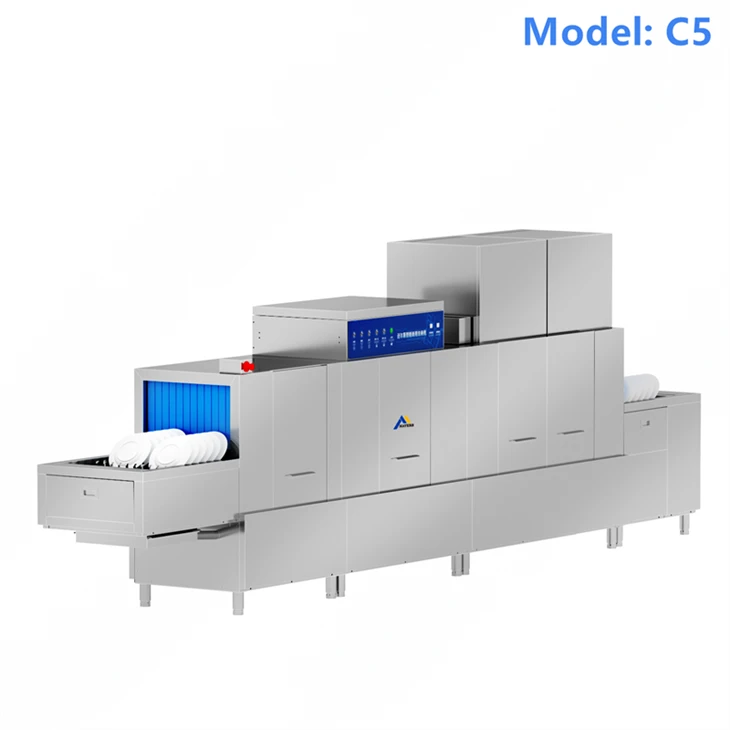

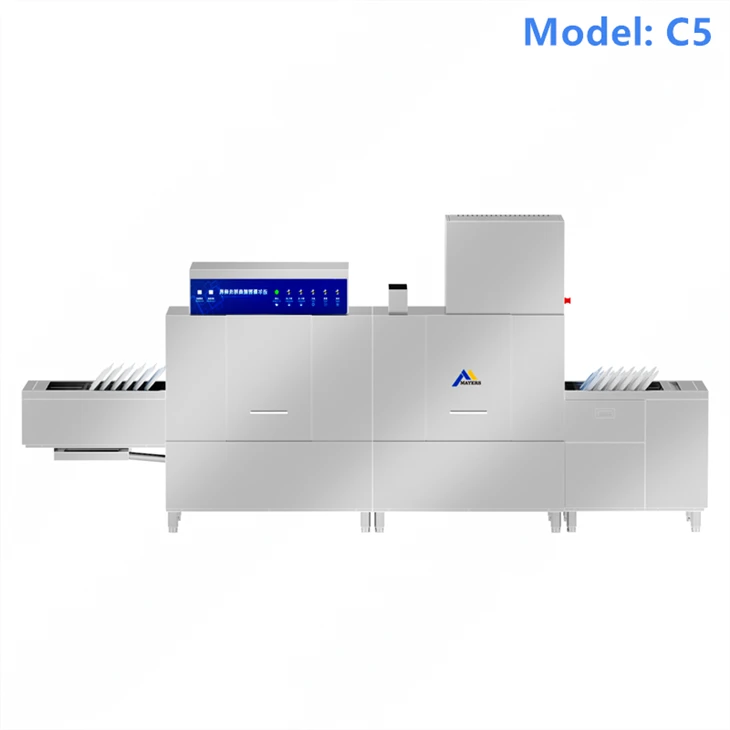

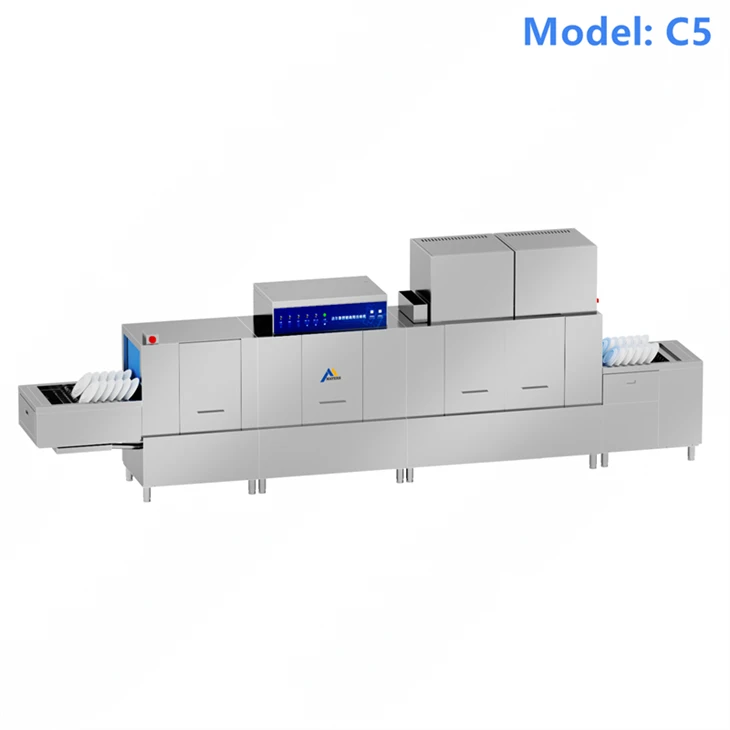

High-Efficiency Commercial Dishwasher
Smart for Commercial Use, Liberating the Kitchen The fully automatic inclined insertion conveyor belt can be started with one button and requires no on-site monitoring. Tableware can be placed and washed at any time and taken out immediately after washing. Equipped with an energy-saving water circulation system, it reduces operating costs and greatly boosts the efficiency of the kitchen!
- Product Introduction
Features
1. Dual basin dual spray drying integrated dishwasher, with two configurations:
- Model 1: 2 washing cycles, 1 rinsing cycle, 1 disinfection cycle, and 1 drying cycle
- Model 2: 2 washing cycles, 2 rinsing cycles, 2 disinfection cycles, and 1 drying cycle
2. Efficient Debris Management
The inlet of the machine is equipped with a debris box and a sludge separator, effectively preventing foreign objects from entering the internal system.
3. Basket - Free and Versatile Washing
Eliminating the need for dish baskets, it offers diverse washing methods. Whether in an inclined or flat position, it can clean tableware of various sizes and shapes with ease.
4. Unique nozzle design
It can ensure the optimal cleaning performance of each tableware.
5. Reliable Electronic Control
The electronic control system utilizes imported Schneider components, guaranteeing stable, durable, and flexible operation. The outlet is equipped with automatic protection and anti - overload functions for enhanced safety.
6. Intelligent Water and Temperature Control
With its smart water level and temperature management system, it automatically refills when water is low, stops when full, restarts heating when temperatures drop, and halts once the set temperature is reached-maximizing energy and water efficiency.
7. High-Temperature Disinfection
The high-temperature rinsing and disinfection area uses a double - floating design and 10-22 high-precision, high-pressure fan- shaped nozzles, ensuring 100% residue removal and disinfection.
8. One click quick switch for drying
The drying function can support switching between hot and cold air. No need to pause the machine, just press the button to seamlessly and quickly transition.
Technical Parameters
|
Regular Size |
5300*825*1950 |
|
Washing Ability |
3,000~7,800 dishes/hour |
|
Washing Cycle |
30~90S |
|
Washing Temperature |
55℃~65℃ |
|
Sterilization Temperature |
82℃~100℃ |
|
Washing Height |
420mm |
|
Entrance Width |
745mm or 825mm |
|
Entrance & Exit Length |
900mm |
| Main Washing Capacity | 90L*2 |
|
Inlet Diameter |
4/in |
|
Drainage Diameter |
5.0/in |
|
Heating Mode |
Electricity or gas |
|
Total Power |
Customization |
Power, Components & Plumbing
-Power Supply: 380V/50Hz, three-phase five-wire, 35 square mm main line, 125A independent leakage-proof switch.
- Customizable Accessories: customers can choose additional items as per needs, including cworking tables (for dirty dishes and clean dishes), bubble soaking tan, untensil baskets, etc.
- Optional Kits: dishwashing liquid, dryers can be sourced in the local market.
- Water Inlet: DN15 (4 in), directly connectable to a general water supply system; minimum water pressure 2 - 5 kg/cm², water hardness 0.032 - 0.103 g/L.
- Drain: 50 mm diameter.
