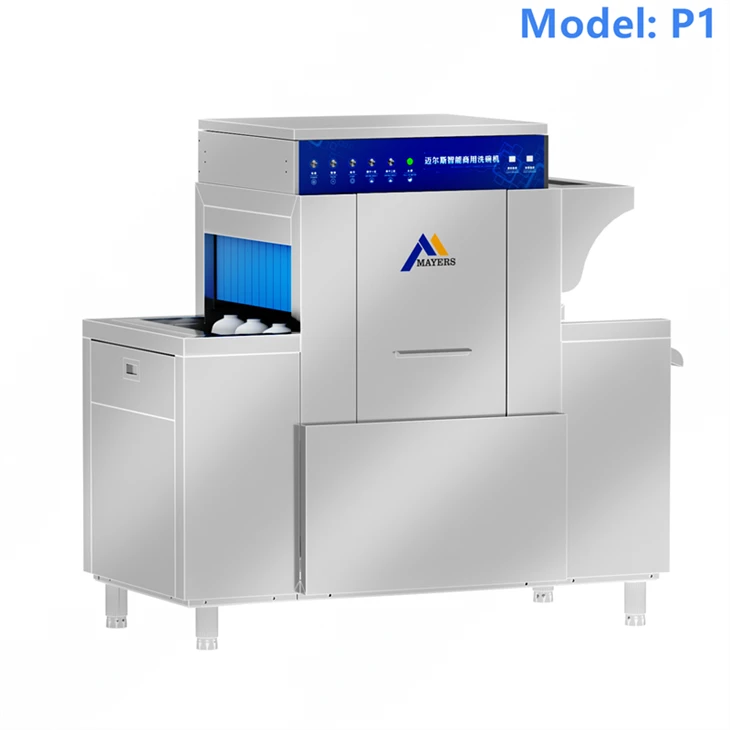

Engergy-Saving Commercial Dishwasher
Experience Unmatched Cleaning Performance! Our flat-type dishwasher features an unique 8-shaped nozzle design, delivering thorough and consistent cleaning to every corner of your dishes. Its intelligent water and temperature management system saves resources, while the high-temperature disinfection zone guarantees 100% hygiene compliance. Upgrade your kitchen with this changing appliance.
- Product Introduction
Features
1. This single-cylinder cleaning machine integrates high-temperature rinsing and disinfection (1 cleaning cycle followed by 1 rinsing and disinfection cycle).

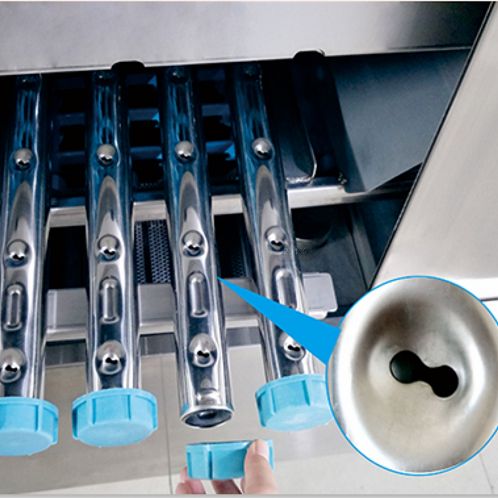

2. It boasts a unique patented nozzle design. The "figure-eight" concave nozzle design ensures the optimal washing effect for every piece of tableware.
3. Equipped with 6 cleaning arms both up and down, 36 high-precision fan-shaped rinsing and disinfection nozzles, delivering excellent cleaning performance.
4. The intelligent "water level management and temperature control system" is highly efficient. It automatically refills water when there is a shortage, stops refilling when the water tank is full, restarts heating when the temperature drops, and halts heating once the set temperature is reached, thus saving both water and electricity.

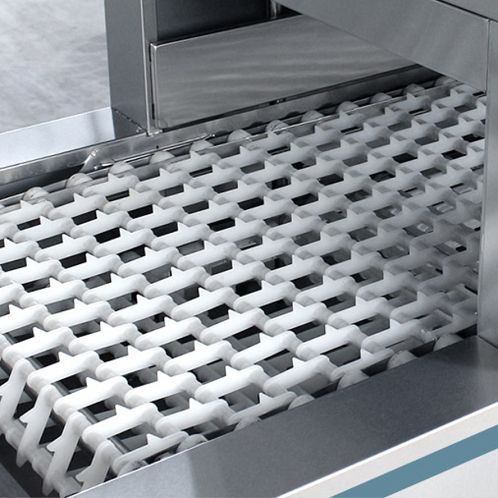

5. The electrical control system uses imported "Schneider" main components, which offer stable and reliable performance. There is also a guide slip device at the outlet end.
Technical Parameters
|
Regular Size |

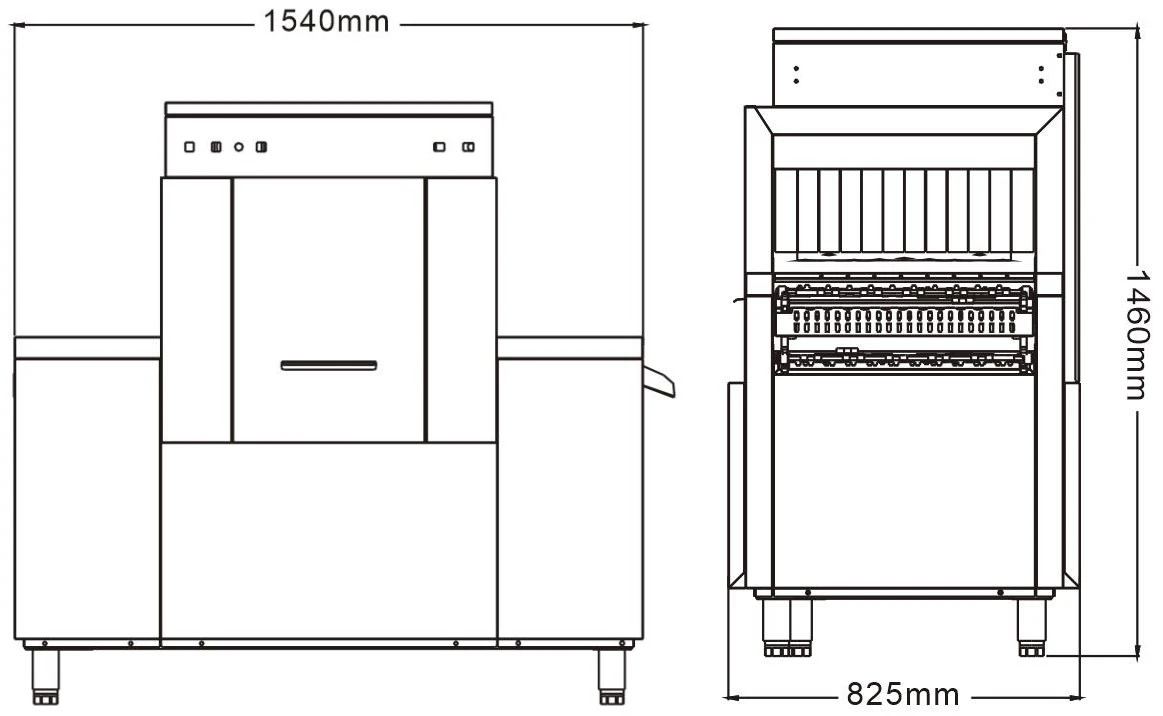

1540*825*1460mm |
|
Washing Ability |
1,800~3,500dishes/hour |
|
Washing Cycle |
30S~60S |
|
Washing Temperature |
55℃-65℃ |
|
Sterilization Temperature |
82℃-100℃ |
|
Washing Height |
270mm |
|
Entrance Width |
614mm/745mm/825mm |
|
Main Washing Capacity |
90L |
|
Water Tank Power |
12KW |
|
Water Consumption |
500L-600L/H |
|
Inlet Diameter |
4/in |
|
Drainage Diameter |
5.0/in |
|
Heating Mode |
Electricity |
|
Total Power |
38KW |
Power, Components, Plumbing
Power Supply
Rated at 380V/50HZ, three-phase five-wire system. Requires a 16 mm² main cable and a 100A independent leakage protection switch.
Optional Accessories
It's recommeneded to customize accessories based on needs, including exhaust hoods, workbenches (for dish collection), cup washing baskets, as well as dispensers, commercial dishwashing liquid, and drying units....
Water Inlet & Outlet
Inlet: DN15 (4 - pipe connection), directly compatible with standard water supply systems. Minimum water pressure: 2 - 5kg/cm²; recommended water hardness: 0.032 - 0.103g/l.
Outlet Diameter: 50mm.
